GA 30+-90_GA 37-90 VSD
GA 30+-90_GA 37-90 VSD
Features

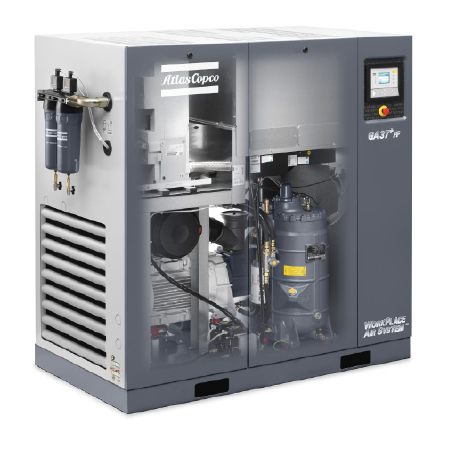

The Atlas Copco GA 30+-90 and GA 37-90 VSD series are high-efficiency, oil-injected rotary screw compressors designed for industrial energy savings and operational uptime. Key features include the energy-saving NEOS Inverter on VSD models, durable IE3/IE4 motors, advanced air and oil filtration, integrated refrigerant dryers, and the Elektronikon Touch controller for remote monitoring.
For more details, visit the Atlas Copco website.
Benefits
The Atlas Copco GA 30+-90 and GA 37-90 VSD oil-injected rotary screw compressors provide maximum reliability, optimized energy efficiency, and low total cost of ownership. These machines are engineered to deliver a stable, high-quality compressed air supply even under severe industrial conditions up to 46 degrees Celsius.
Core Benefits of the GA 30+-90 and GA 37-90 VSD Series
- Substantial Energy Savings: The VSD versions match air supply directly to real-time air demand, eliminating idle times and lowering energy consumption by an average of 35%.
- Superior Lifecycle Efficiency: Premium screw elements combined with high-efficiency IE3 or IE4 motors ensure peak performance while reducing overall operational costs.
- Exceptional System Reliability: Oversized separate oil coolers and aftercoolers maintain low element outlet temperatures to prolong component life.
- Maximum Dust Protection: Electrical cubicles operate under overpressure to stop electrically conductive dust from entering, protecting vital electronic systems.
- Integrated Air Quality: Full Feature options feature a built-in refrigerant dryer and oil-water separator to prevent moisture and rust in your piping network.
- Advanced Monitoring and Control: The smart Elektronikon graphical controller features clear data readouts, safety warnings, and remote control capabilities to maximize plant efficiency.
- Virtually Maintenance-Free Drivetrain: The enclosed, robust drivetrain resists dirt and prevents slippage losses, allowing for long maintenance intervals of up to 4,000 hours.
- Effective Condensate Drainage: Automated electronic no-loss water drains continually drop accumulated water without wasting any compressed process air.
- High Efficiency Filtration: Heavy-duty air intake filters capture 99.9% of dirt particles down to 3 microns to safeguard internal screw components from premature wear.
